Gun Model: 1851

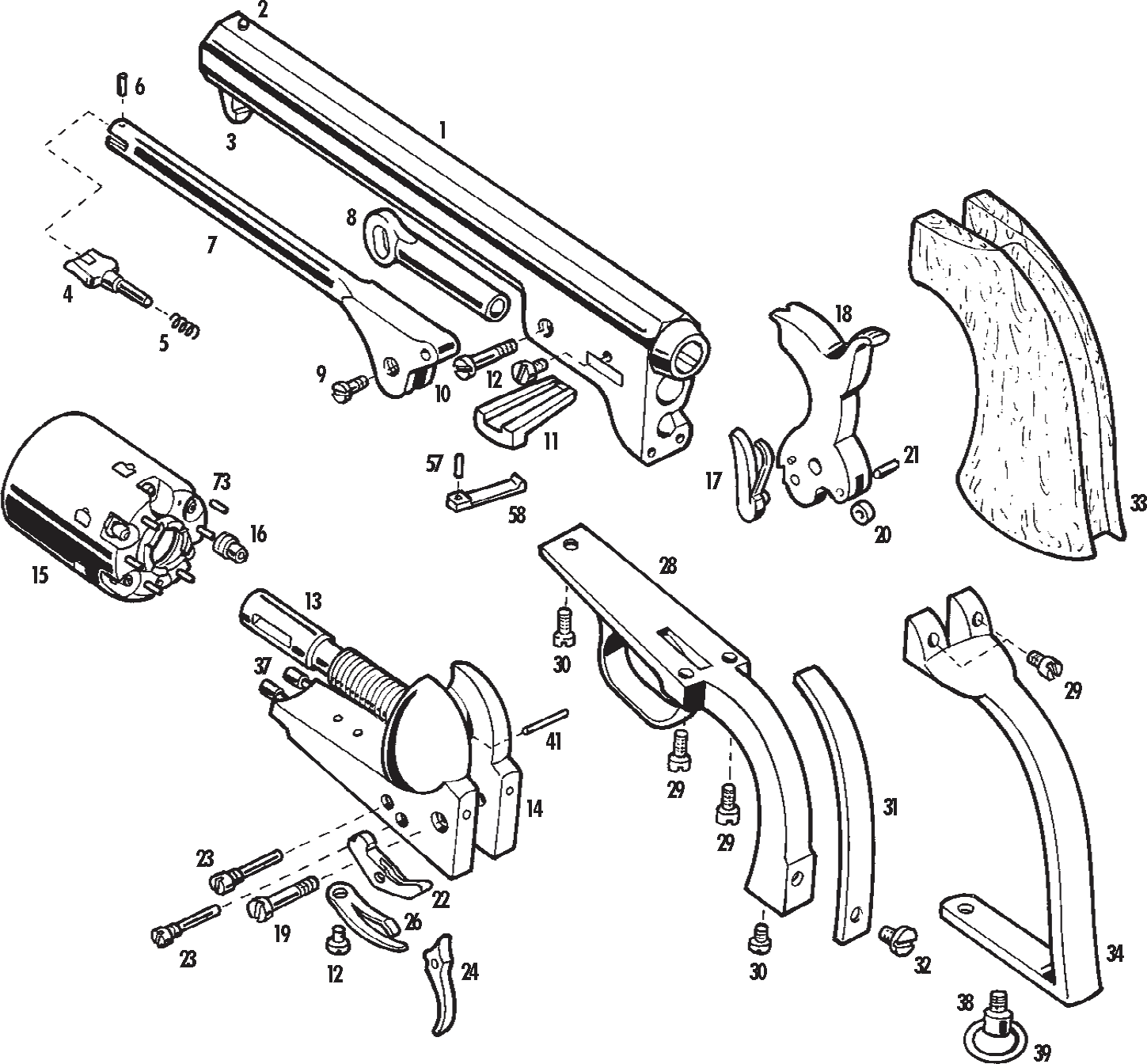

Exploded technical drawing
Explode
-
Flattop Birdshead Backstrap Steel Blued
-
1851-1860-1861-1873 Walnut Flattop Birdshead Checkered Grip (Part will require fitting)
-
1851-1861 Navy Backstrap Blued Steel
-
1851-1860-1861-1873 Walnut Flattop Birdshead Grip (Part will require fitting)
-
1851-1861 Navy Walnut Checkered Grip (Part will require fitting)
-
1851 Loading Lever Assembly For 4-7-8″ To 5″ Barrel Nickel (Includes #4,5,6,7,8,9)
-
1851-1861 Navy Walnut Grip (Part will require fitting)
-
1851-1860-1861 Hammer White Engraved (Includes hammer, hammer roller, and hammer roller pin)
-
1851-1860-1861 Hammer White (Includes hammer, hammer roller, and hammer roller pin)
-
Pietta 1851-1861 Navy & 1860 Army Revolver Action Part Set
-
1851 Loading Lever Assembly For 4-7-8″ To 5″ Barrel White (Includes #4,5,6,7,8,9)
-
Pietta 1851 Navy Revolver Screw Set Nickel
-
1851-1860-1861 Wedge Assembly White (Includes wedge, spring & spring pin)
-
1851-1860-1861 Wedge Assembly Nickel (Includes wedge, spring & spring pin)
-
1851-1860-1861 Cylinder Pin Nickel
-
1851 Loading Lever Assembly For 7-3-8″ To 12″ Barrel Case Hardened (Includes #4,5,6,7,8,9)
-
1851 Loading Lever Assembly For 4-7-8″ To 5″ Barrel Case Hardened (Includes #4,5,6,7,8,9)
-
Pietta 1851 Navy Revolver Screw Set
-
1851-1861 Navy Triggerguard Brass
-
1851-1861 Navy Backstrap Brass
-
1851-1861-1873 Navy Walnut Grip Unfinished (Part will require fitting)
-
1851-1860-1861 Hammer Case Hardened (Includes hammer, hammer roller, and hammer roller pin)
-
1851-1860-1861 Brass Loading Tool
-
Pietta Steel Revolver Nipples Set Of 6 (6X0.75MM Thread) – Clearance
-
1851-1860-1861 Wedge Assembly Blued (Includes wedge, spring & spring pin)
-
1851-1860-1861 Cylinder Pin
-
1862 Dance Bolt
-
1851-1860-1861 Bolt
-
1851 Lanyard Ring Assembly Blued (Includes lanyard and base screw)
-
1851 Plunger .36-.44 Case Hardened
-
1851-1860-1861 Trigger Blued
-
1851-1860-1861 Hand Assembly (Includes hand and flat spring)
-
1851-1860-1861-Spiller & Burr Loading Lever Barrel Stud White Finish
-
1851-1860-1861 Wedge Screw And 1858-Spiller Trigger & Bolt Spring Screw Nickel
-
1851-1860-1861 Trigger Screw & Bolt Screw Nickel
-
1851-1860-1861 Rear Backstrap & Triggerguard Screw And 1858 Mainspring Screw Nickel
-
1851-1858-1860-1861 Front Triggerguard Screw & Navy Bottom Grip Screw Nickel
-
1851 Two Piece Grip Screw Nickel
-
1860-1861-Dance Front Blade Sight
-
1851-Spiller Brass Post Front Sight
-
1851-1860-1861-Spiller & Burr Loading Lever Barrel Stud Blued
-
1851-1860-1861 Loading Lever Latch Blued
-
1851-1860-1861 Loading Lever Latch Coil Spring
-
1851-1860-1861 Loading Lever Latch Pin
-
1851 Plunger Screw Blued
-
1851 Loading Lever Screw Blued
-
1851-1860-1861 Wedge Screw And Trigger & 1858-Spiller Bolt Spring Screw Stainless Steel
-
1851-1860-1861 Wedge Screw And 1858-Spiller Trigger & Bolt Spring Screw Blued
-
Pepperbox Cylinder Pin Retainer Screw Blued
-
1851-1860-1861-1858-Spiller-1873 Nipple Blued (6X75 MM Thread)
-
1851-1860-1861 Hammer Screw Blued
-
1851-1860-1861-1858-Spiller-1873 Hammer Roller Stainless Steel
-
1851-1860-1861-1858-Spiller-1873 Hammer Roller
-
1851-1860-1861-1858-Spiller Hammer Roller Pin & 1873 Firing Pin Retainer Pin
-
1851-1860-1861 Trigger Screw & Bolt Screw Blued
-
1851-1860-1861-DANCE-PEPPERBOX Trigger & Bolt Flat Spring
-
1851-1860-1861 Rear Backstrap & Triggerguard Screw And 1858 Mainspring Screw Stainless Steel
-
1851-1860-1861 Rear Backstrap & Triggerguard Screw And 1858 Mainspring Screw Blued
-
1851-1858-1860-1861 Front Triggerguard Screw & Navy Bottom Grip Screw Stainless Steel
-
1851-1858-1860-1861 Front Triggerguard Screw & Navy Bottom Grip Screw Blued
-
1851-1860-1861 Flat Mainspring
-
1851-1860-1861 Mainspring Screw Blued
-
1851-1860-1861 Barrel & Frame Line Up Pin
-
1851 Threaded Lanyard Base Screw Blued
-
1851 Lanyard Ring Blued
-
1851-1860-1861 Cylinder Pin Locking Pin
-
1851-1860-1861 Wedge Spring Pin
-
1851-1860-1861 Wedge Flat Spring
-
1851 Two Piece Grip Screw Blued
-
1851-1860-1861 Cylinder Top Safety Pin
