Gun Model: 1863

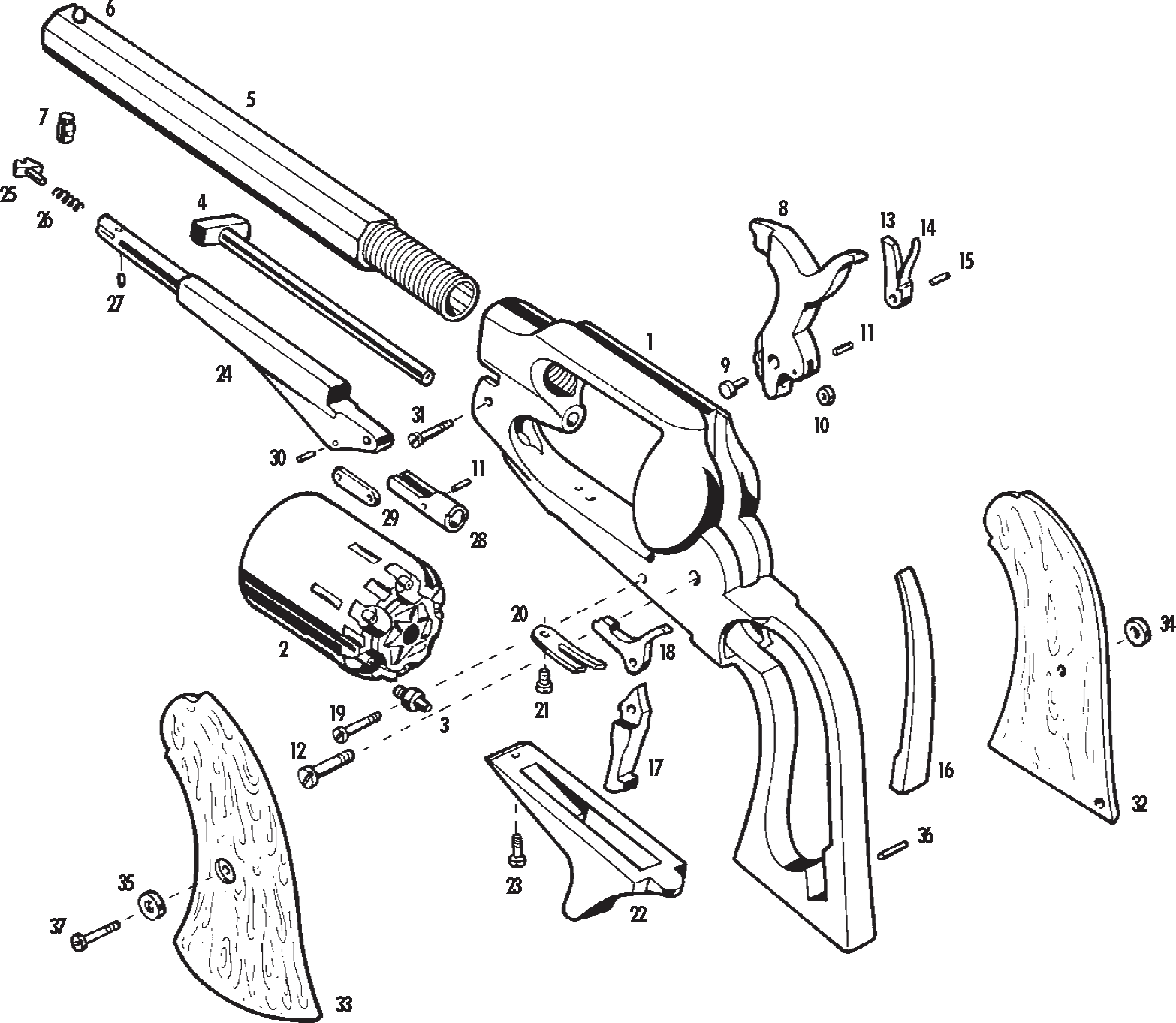

Exploded technical drawing
Explode
-
1863 Right & Left White PVC Grip (Includes #32,33,34,35) (Part will require fitting)
-
1863 Steel Triggerguard Blued
-
1863 Loading Lever Assembly .31 Blued (Includes #11,24,25,26,27,28,29,30)
-
1863 Triggerguard Brass Nickel
-
1863 Hammer Nickel (Includes #8,9,10,11)
-
1863 Walnut Right & Left Grip (Includes #32,33,34,35) (Part will require fitting)
-
1863 Triggerguard Brass
-
1863 Hammer Case Hardened (Includes #8,9,10,11)
-
1863 Bolt
-
1863 Plunger .31 Blued
-
1863 Spur Trigger case hardened
-
1863 Grip Screw Nickel
-
1863 Flat Mainspring
-
1863 Front Blade Sight
-
1863 Hand Assembly (Includes #13,14)
-
1863 Nipple Blued
-
1863 Cylinder Pin Blued
-
1863 Loading Lever Barrel Stud
-
1863 Hammer Roller
-
1863 Hammer Roller Pin & Plunger To Link Pin
-
1863 Hammer Screw Blued
-
1863 Hand Screw
-
1863 Trigger Screw Blued
-
1863 Trigger & Bolt Flat Spring
-
1863 Trigger & Bolt Spring Screw Blued
-
1863 Triggerguard Screw Blued
-
1863 Loading Lever Latch Blued
-
1863 Loading Lever Latch Coil Spring
-
1863 Loading Lever Latch Pin
-
1863 Loading Lever Link
-
1863 Loading Lever To Link Pin
-
1863 Loading Lever Screw Blued
-
1863 Right Threaded Grip Nut Brass
-
1863 Left Grip Nut Brass
-
1863 Grip Pin
-
1863 Grip Screw Blued
