Gun Model: LEMAT

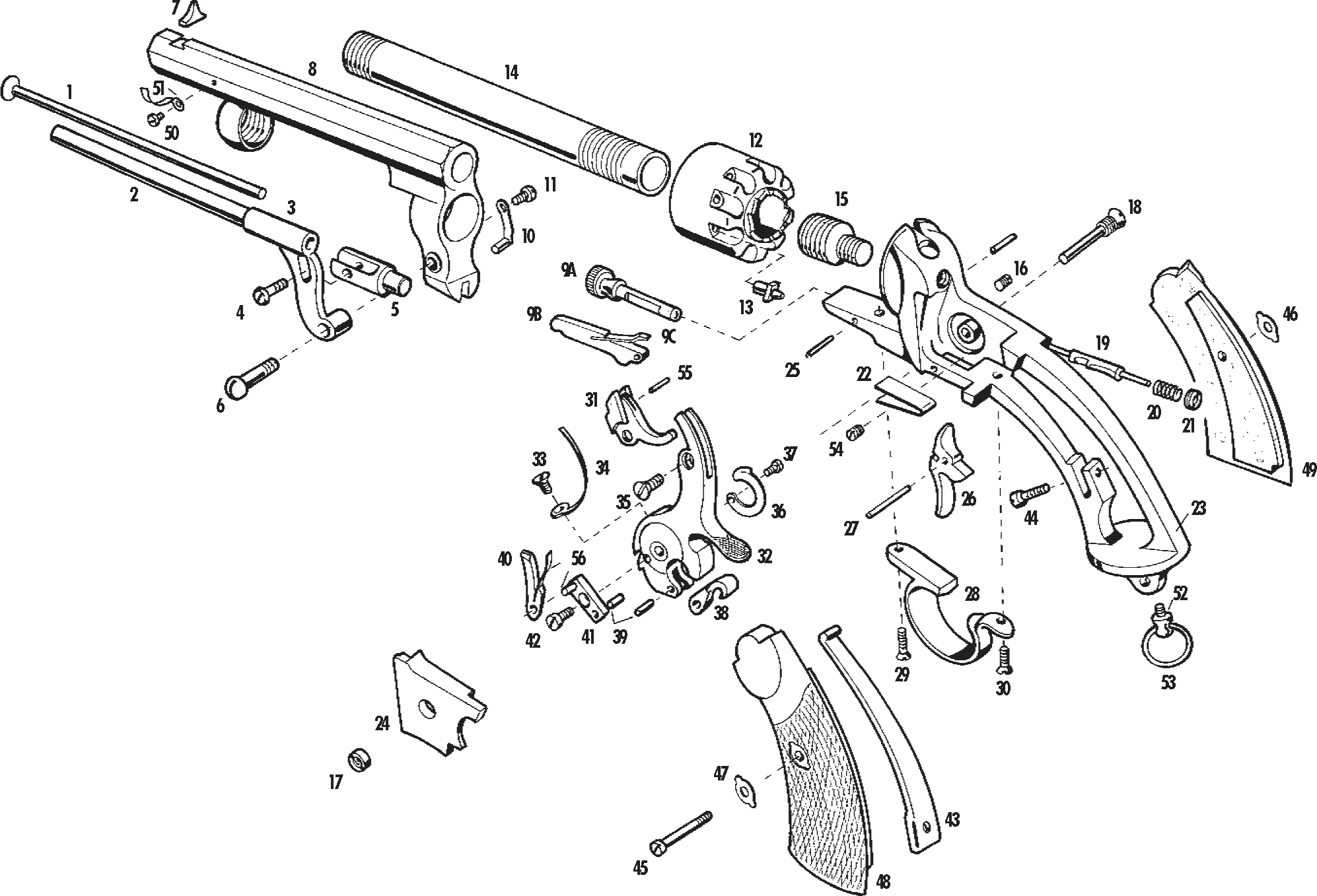

Exploded technical drawing
Explode
-
Lemat Checkered Walnut Left & Right Grip (Includes #46,47,48,49)
-
Lemat Hammer Case Hardened For Army/Cavalry (Includes #31,32,35,55)
-
Lemat Hammer Case Hardened With Spur For Navy (Includes #31,32,35,55)
-
Lemat Loading Lever Assembly Blued (Includes #2,3)
-
Lemat Side Plate
-
Lemat Spur Triggerguard Blued For Cavalry
-
Lemat Triggerguard Blued For Navy/Army
-
Lemat Hammer Nose Case Hardened With Spur For Navy
-
Lemat Hammer Nose Case Hardened For Army/Cavalry
-
Lemat Lanyard Assembly (Includes #52,53)
-
Lemat Trigger Case Hardened
-
Lemat Side Plate Unfinished – Clearance
-
Lemat Plunger .44 Blued
-
Lemat Cylinder Stop
-
Lemat Hand Bracket
-
Lemat Mainspring
-
Lemat Shot Barrel Ramrod Blued
-
Lemat Takedown Pin Blued For Army/Navy
-
Lemat Threaded Breech Plug
-
Lemat Right Grip Threaded Nut Blued
-
Lemat Left Grip Nut Blued
-
Lemat Hand Assembly
-
Lemat Cylinder Stop Tension Spring
-
Lemat Dovetail Front Sight Blued
-
Lemat Mainspring To Hammer Hook
-
Lemat Takedown Pin Spring
-
Lemat Takedown Lever Spring For Cavalry
-
Lemat Hammer Nose Spring
-
Lemat Loading Lever Screw Blued With Flat Head For Cavalry
-
Lemat Loading Lever Screw Blued With Round Head For Army/Navy
-
Lemat Takedown Pin Spring Screw Blued
-
Lemat Nipple Blued
-
Lemat Cylinder Stop Tension Spring Adjustment Screw Blued
-
Lemat Side Plate Nut
-
Lemat Hammer Screw Blued
-
Lemat Cylinder Stop Coil Spring
-
Lemat Cylinder Stop Retainer Nut
-
Lemat Trigger Spring
-
Lemat Takedown Lever Pin
-
Lemat Trigger Pin
-
Lemat Front Triggerguard Screw Blued
-
Lemat Rear Triggerguard Screw Blued
-
Lemat Hammer Nose Spring Screw Blued
-
Lemat Hammer Nose Screw
-
Lemat Cylinder Stop Tension Spring Screw Blued
-
Spiller Link To Plunger Pin & Lemat Hammer Hook And Bracket Pin
-
Lemat Hand Bracket Screw Blued
-
Lemat Mainspring Screw Blued
-
Lemat Grip Screw Blued
-
Lemat Loading Lever Spring Screw Blued
-
Lemat Loading Lever Spring
-
1858/Spiller Hand Screw & Lemat Cylinder Stop Screw
-
Lemat Hammer Nose Pin
-
Lemat Hand Catching Pin
-
Lemat Breech Plug Locking Pin
-
Lemat Takedown Lever Blued For Cavalry
-
Lemat Plunger Screw Blued
